Technical Data Sheet:
3255_QF_Spark_Trap.pdf (318.47 kB)
Technical Manual Technical Manual

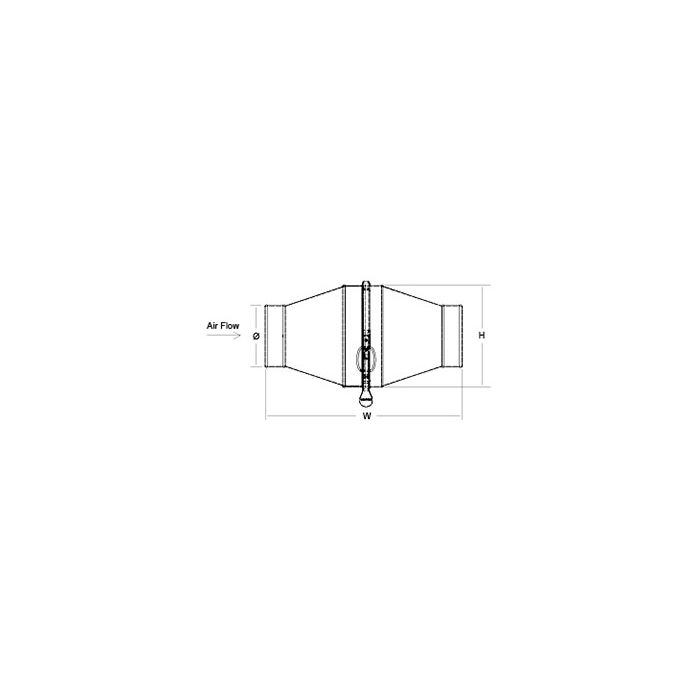

3255 - QF In-line Spark Trap

  • Greatly reduces the possibility of fire in cyclones / collectors by decreasing the number of sparks which could reach these through the air handling system. This is accomplished by disrupting the laminar airflow to cause sparks to cool and extinguish before they can enter the dust collector / cyclone.
  • No moving parts and no power required for operation.
  • Velocity: 1500-5000 fpm
  • Duct distance recommended: At least ten diameters from dust collector / cyclone and the source (example: 8" duct line, recommended distance is min. 80")
  • Horizontal mounting only.
In stock
SKU
3255
Part Number Diameter DescriptionPriceQtyTotal
8010007300 4 in. Spark Trap In Line MS 22ga 4QF$932.10
8010007320 4 in. Spark Trap In Line AFL Assembly MS 22ga 4AFL$1,007.60
8010007322 5 in. Spark Trap In Line AFL Assembly MS 22ga 5AFL$1,175.20
8010007302 5 in. Spark Trap In Line MS 22ga 5QF$1,094.30
8010007323 6 in. Spark Trap In Line AFL Assembly MS 22ga 6AFL$1,430.30
8010007303 6 in. Spark Trap In Line MS 22ga 6QF$1,340.20
8010007304 7 in. Spark Trap In Line MS 22ga 7QF$1,573.50
8010007324 7 in. Spark Trap In Line AFL Assembly MS 22ga 7AFL$1,667.90
8010007325 8 in. Spark Trap In Line AFL Assembly MS 22ga 8AFL$1,891.80
8010007305 8 in. Spark Trap In Line MS 22ga 8QF$1,785.90
8010007306 9 in. Spark Trap In Line MS 22ga 9QF$1,890.20
8010007326 9 in. Spark Trap In Line AFL Assembly MS 22ga 9AFL$2,003.40
8010007327 10 in. Spark Trap In Line AFL Assembly MS 22ga 10AFL$2,147.00
8010007307 10 in. Spark Trap In Line MS 22ga 10QF$2,019.30
8010007308 11 in. Spark Trap In Line MS 22ga 11QF$2,156.90
8010007328 11 in. Spark Trap In Line AFL Assembly MS 22ga 11AFL$2,309.70
8010007309 12 in. Spark Trap In Line MS 22ga 12QF$2,156.90
8010007329 12 in. Spark Trap In Line AFL Assembly MS 22ga 12AFL$2,309.70
8010007310 13 in. Spark Trap In Line MS 20ga 13QF$2,634.00
8010007330 13 in. Spark Trap In Line AFL Assembly MS 20ga 13AFL$2,813.60
8010007331 14 in. Spark Trap In Line AFL Assembly MS 20ga 14AFL$2,813.60
8010007311 14 in. Spark Trap In Line MS 20ga 14QF$2,634.00
8010007312 15 in. Spark Trap In Line MS 20ga 15QF$2,933.30
8010007332 15 in. Spark Trap In Line AFL Assembly MS 20ga 15AFL$3,159.80
8010007333 16 in. Spark Trap In Line AFL Assembly MS 20ga 16AFL$3,159.80
8010007313 16 in. Spark Trap In Line MS 20ga 16QF$2,933.30
8010007334 17 in. Spark Trap In Line AFL Assembly MS 20ga 17AFL$3,537.00
8010007314 17 in. Spark Trap In Line MS 20ga 17QF$3,299.70
8010007335 18 in. Spark Trap In Line AFL Assembly MS 20ga 18AFL$3,537.00
8010007315 18 in. Spark Trap In Line MS 20ga 18QF$3,299.70
8010007316 19 in. Spark Trap In Line MS 20ga 19QF$3,666.30
8010007336 19 in. Spark Trap In Line AFL Assembly MS 20ga 19AFL$3,914.10
8010007317 20 in. Spark Trap In Line MS 20ga 20QF$3,666.30
8010007337 20 in. Spark Trap In Line AFL Assembly MS 20ga 20AFL$3,914.10
8010007318 22 in. Spark Trap In Line MS 20ga 22QF$4,033.20
8010007338 22 in. Spark Trap In Line AFL Assembly MS 20ga 22AFL$4,303.90
8010007319 24 in. Spark Trap In Line MS 20ga 24QF$4,399.60
8010007339 24 in. Spark Trap In Line AFL Assembly MS 20ga 24AFL$4,693.70
