3255 - QF In-line Spark Trap

  • Greatly reduces the possibility of fire in cyclones / collectors by decreasing the number of sparks which could reach these through the air handling system. This is accomplished by disrupting the laminar airflow to cause sparks to cool and extinguish before they can enter the dust collector / cyclone.
  • No moving parts and no power required for operation.
  • Velocity: 1500-5000 fpm
  • Duct distance recommended: At least ten diameters from dust collector / cyclone and the source (example: 8" duct line, recommended distance is min. 80")
  • Horizontal mounting only.
In stock
SKU
3255

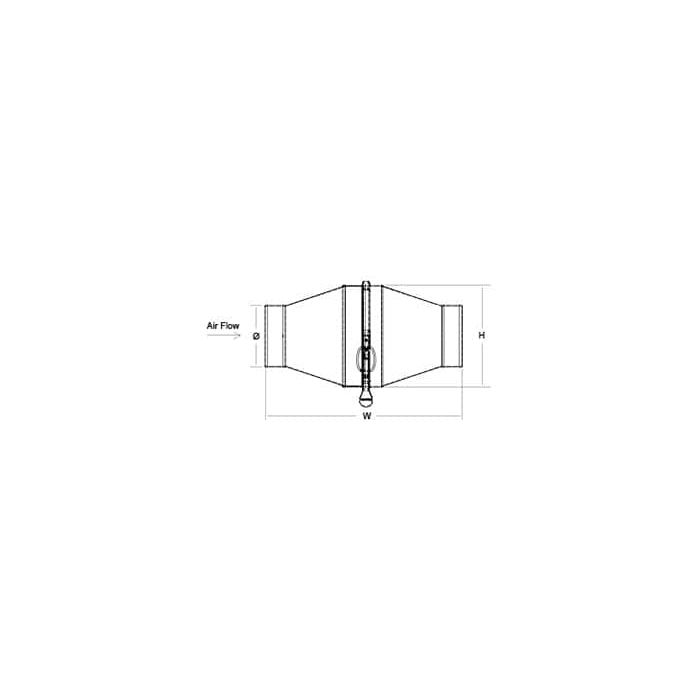

Part Number Diameter Description Price Qty Total
3255-0400-100000 4 in. 4" QF In-line Spark Trap - Galvanized QF Ends - H=7" W=18" $402.15
3255-0400-1000AF 4 in. 4" Flanged In-line Spark Trap - Galvanized AF Ends - H=7" W=18" $422.80
3255-0400-200000 4 in. 4" QF In-line Spark Trap - 304 Stainless Steel QF Ends - H=7" W=18" $1,386.61
3255-0400-2000AF 4 in. 4" Flanged In-line Spark Trap - 304 Stainless Steel AF Ends - H=7" W=18" $1,481.41
3255-0500-100000 5 in. 5" QF In-line Spark Trap - Galvanized QF Ends - H=9" W=20" $472.31
3255-0500-1000AF 5 in. 5" Flanged In-line Spark Trap - Galvanized AF Ends - H=9" W=20" $494.84
3255-0500-200000 5 in. 5" QF In-line Spark Trap - 304 Stainless Steel QF Ends - H=9" W=20" $1,538.02
3255-0500-2000AF 5 in. 5" Flanged In-line Spark Trap - 304 Stainless Steel AF Ends - H=9" W=20" $1,638.80
3255-0600-100000 6 in. 6" QF In-line Spark Trap - Galvanized QF Ends - H=10" W=20" $578.42
3255-0600-1000AF 6 in. 6" Flanged In-line Spark Trap - Galvanized AF Ends - H=10" W=20" $606.73
3255-0600-200000 6 in. 6" QF In-line Spark Trap - 304 Stainless Steel QF Ends - H=10" W=20" $1,767.23
3255-0600-2000AF 6 in. 6" Flanged In-line Spark Trap - 304 Stainless Steel AF Ends - H=10" W=20" $1,873.01
3255-0700-100000 7 in. 7" QF In-line Spark Trap - Galvanized QF Ends - H=12" W=22" $679.10
3255-0700-2000AF 7 in. 7" Flanged In-line Spark Trap - 304 Stainless Steel AF Ends - H=12" W=22" $2,098.12
3255-0700-200000 7 in. 7" QF In-line Spark Trap - 304 Stainless Steel QF Ends - H=12" W=22" $1,984.68
3255-0700-1000AF 7 in. 7" Flanged In-line Spark Trap - Galvanized AF Ends - H=12" W=22" $709.29
3255-0800-200000 8 in. 8" QF In-line Spark Trap - 304 Stainless Steel QF Ends - H=13" W=22" $2,182.93
3255-0800-1000AF 8 in. 8" Flanged In-line Spark Trap - Galvanized AF Ends - H=13" W=22" $808.19
3255-0800-2000AF 8 in. 8" Flanged In-line Spark Trap - 304 Stainless Steel AF Ends - H=13" W=22" $2,299.92
3255-0800-100000 8 in. 8" QF In-line Spark Trap - Galvanized QF Ends - H=13" W=22" $770.78
3255-0900-2000AF 9 in. 9" Flanged In-line Spark Trap - 304 Stainless Steel AF Ends - H=15" W=24" $2,397.27
3255-0900-100000 9 in. 9" QF In-line Spark Trap - Galvanized QF Ends - H=15" W=24" $815.74
3255-0900-200000 9 in. 9" QF In-line Spark Trap - 304 Stainless Steel QF Ends - H=15" W=24" $2,280.05
3255-0900-1000AF 9 in. 9" Flanged In-line Spark Trap - Galvanized AF Ends - H=15" W=24" $857.48
3255-1000-100000 10 in. 10" QF In-line Spark Trap - Galvanized QF Ends - H=16" W=24" $871.57
3255-1000-1000AF 10 in. 10" Flanged In-line Spark Trap - Galvanized AF Ends - H=16" W=24" $921.19
3255-1000-200000 10 in. 10" QF In-line Spark Trap - 304 Stainless Steel QF Ends - H=16" W=24" $2,400.38
3255-1000-2000AF 10 in. 10" Flanged In-line Spark Trap - 304 Stainless Steel AF Ends - H=16" W=24" $2,520.70
3255-1200-100000 12 in. 12" QF In-line Spark Trap - Galvanized QF Ends - H=18" W=26" $930.85
3255-1200-1000AF 12 in. 12" Flanged In-line Spark Trap - Galvanized AF Ends - H=18" W=26" $995.89
3255-1200-200000 12 in. 12" QF In-line Spark Trap - 304 Stainless Steel QF Ends - H=18" W=26" $2,528.47
3255-1200-2000AF 12 in. 12" Flanged In-line Spark Trap - 304 Stainless Steel AF Ends - H=18" W=26" $2,654.90
3255-1400-100000 14 in. 14" QF In-line Spark Trap - Galvanized QF Ends - H=22" W=28" $1,136.86
3255-1400-1000AF 14 in. 14" Flanged In-line Spark Trap - Galvanized AF Ends - H=22" W=28" $1,217.34
3255-1400-200000 14 in. 14" QF In-line Spark Trap - 304 Stainless Steel QF Ends - H=22" W=28" $2,973.25
3255-1400-2000AF 14 in. 14" Flanged In-line Spark Trap - 304 Stainless Steel AF Ends - H=22" W=28" $3,106.34
3255-1600-100000 16 in. 16" QF In-line Spark Trap - Galvanized QF Ends - H=25" W=30" $1,265.96
3255-1600-1000AF 16 in. 16" Flanged In-line Spark Trap - Galvanized AF Ends - H=25" W=30" $1,338.11
3255-1600-200000 16 in. 16" QF In-line Spark Trap - 304 Stainless Steel QF Ends - H=25" W=30" $3,375.84
3255-1600-2000AF 16 in. 16" Flanged In-line Spark Trap - 304 Stainless Steel AF Ends - H=25" W=30" $3,487.84
3255-1800-100000 18 in. 18" QF In-line Spark Trap - Galvanized QF Ends - H=28" W=32" $1,424.13
3255-1800-2000AF 18 in. 18" Flanged In-line Spark Trap - 304 Stainless Steel AF Ends - H=28" W=32" $3,925.18
3255-1800-200000 18 in. 18" QF In-line Spark Trap - 304 Stainless Steel QF Ends - H=28" W=32" $3,797.75
3255-1800-1000AF 18 in. 18" Flanged In-line Spark Trap - Galvanized AF Ends - H=28" W=32" $1,503.05
3255-2000-200000 20 in. 20" QF In-line Spark Trap - 304 Stainless Steel QF Ends - H=31" W=34" $4,219.78
3255-2000-1000AF 20 in. 20" Flanged In-line Spark Trap - Galvanized AF Ends - H=31" W=34" $1,670.22
3255-2000-2000AF 20 in. 20" Flanged In-line Spark Trap - 304 Stainless Steel AF Ends - H=31" W=34" $4,362.30
3255-2000-100000 20 in. 20" QF In-line Spark Trap - Galvanized QF Ends - H=31" W=34" $1,582.42
3255-2200-2000AF 22 in. 22" Flanged In-line Spark Trap - 304 Stainless Steel AF Ends - H=35" W=38" $4,796.20
3255-2200-100000 22 in. 22" QF In-line Spark Trap - Galvanized QF Ends - H=35" W=38" $1,740.70
3255-2200-200000 22 in. 22" QF In-line Spark Trap - 304 Stainless Steel QF Ends - H=35" W=38" $4,641.80
3255-2200-1000AF 22 in. 22" Flanged In-line Spark Trap - Galvanized AF Ends - H=35" W=38" $1,834.16
3255-2400-200000 24 in. 24" QF In-line Spark Trap - 304 Stainless Steel QF Ends - H=38" W=40" $5,063.71
3255-2400-100000 24 in. 24" QF In-line Spark Trap - Galvanized QF Ends - H=38" W=40" $1,898.88
3255-2400-1000AF 24 in. 24" Flanged In-line Spark Trap - Galvanized AF Ends - H=38" W=40" $1,994.78
3255-2400-2000AF 24 in. 24" Flanged In-line Spark Trap - 304 Stainless Steel AF Ends - H=38" W=40" $5,233.65
